Horizontal or vertical steel tank – how to choose the layout for space, transport and operation?

Choosing a tank is not only about capacity and material. In practice, the layout is just as important: horizontal or vertical. This decision affects footprint, foundation design, nozzle layout, transport and daily service access.

If you need a reliable solution for a plant, farm or process installation, explore Agrotex used steel tanks. We help match tanks to real working conditions and can modernize nozzles, manholes and supports when needed.

When is a horizontal tank better?

Horizontal steel tanks are useful where installation height is limited: low halls, shelters, crane paths or areas under roofing. The low shell position makes side manholes, nozzles and fittings easier to access without tall service platforms.

This layout can also simplify transport and installation on saddles. The trade-off is footprint: a horizontal tank needs more length and a properly levelled base. For larger capacities, support spacing is important to avoid local shell stress.

When does a vertical steel tank win?

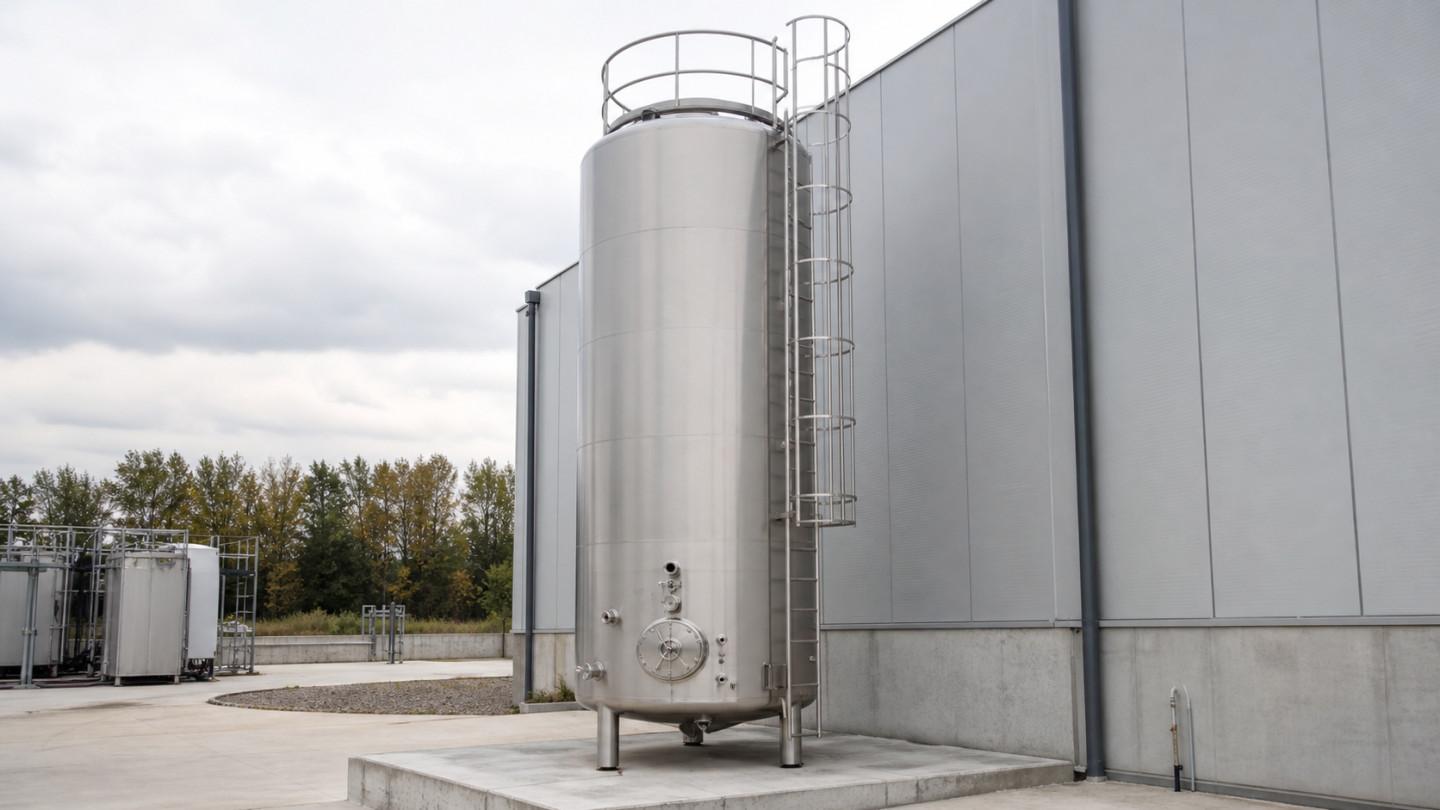

Vertical tanks are a strong choice where floor space is limited. For the same capacity, they usually occupy a much smaller footprint than horizontal tanks. This matters near production halls, in technical yards and in farms where the tank must fit between existing buildings.

A vertical layout can also support certain processes. Liquid naturally settles toward the bottom, bottom outlet design is straightforward and mixing systems can be arranged efficiently. The key requirements are installation height, stable foundation and safe top access.

Foundation, nozzles and service access

The layout should be chosen with the whole installation in mind. Check where pipes will enter, where the pump will stand, how the tank will be drained and whether service teams can reach the inspection manhole. With used tanks, adapting the existing nozzles is often more practical than searching for a perfect catalogue unit.

• Horizontal tanks simplify side access and low support installation.
• Vertical tanks save space and support clean bottom-outlet design.
• Nozzle modernization helps adapt a used tank to a new process.
• Stable foundation is essential in both layouts.

Summary

There is no universal best layout. A horizontal steel tank is practical when height is limited and ground-level access matters. A vertical steel tank is better where footprint and organized process piping are the priorities. The safest choice comes from analyzing the site, transport, nozzles and stored medium. Agrotex can support the process from tank selection to preparation for operation.
